Municipal
Bellwood Borough Authority Waterline Replacement Project
The Bellwood Borough Authority contracted Point Design Group to assist them in preparing plans and specifications, contract award administration and construction observation.
Point Design Group enabled the Village to cost-effectively rehabilitate the water tower and replace the water main with no disruption to the Village’s water supply.

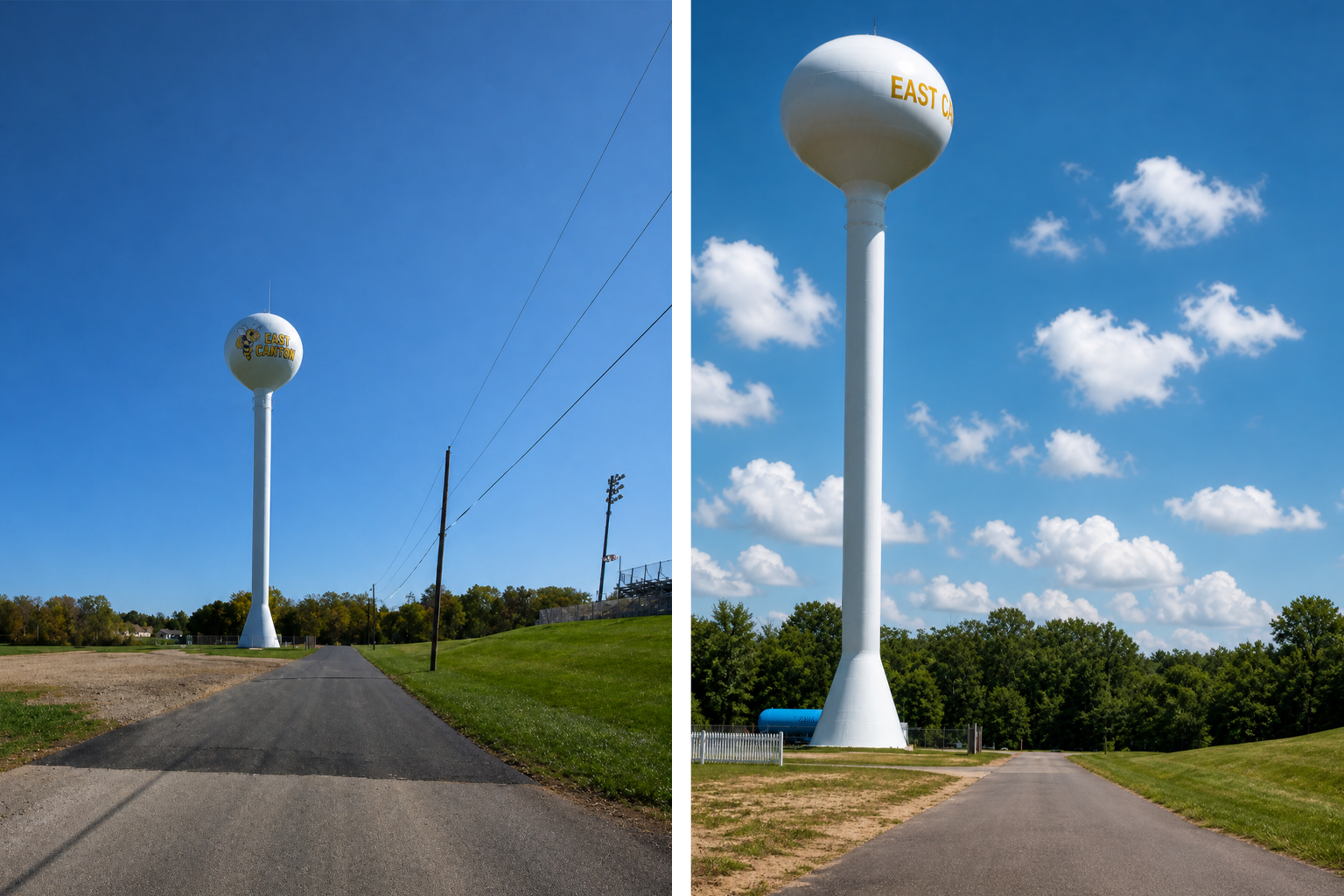

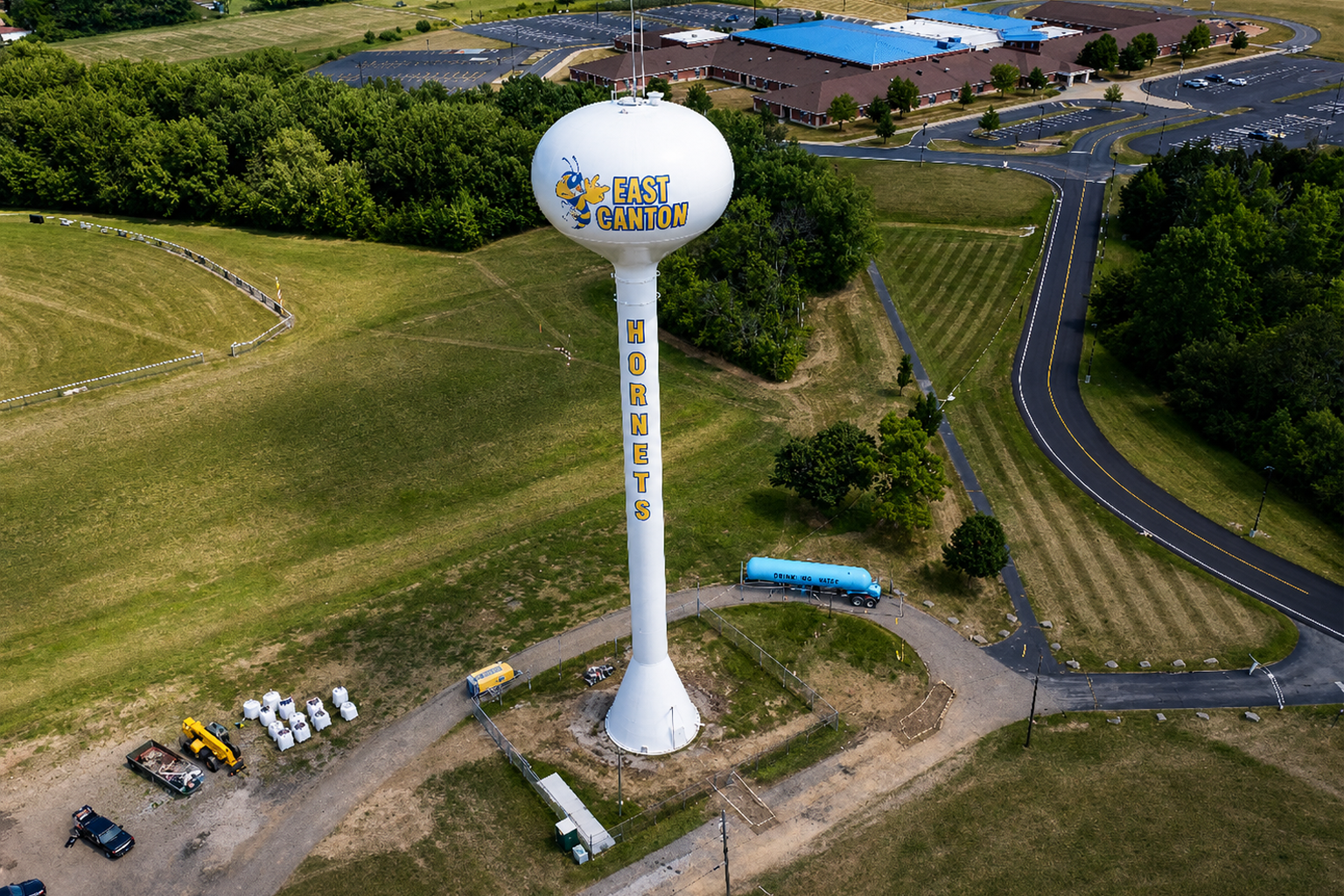

Point Design Group partnered with the Village of East Canton, Ohio, to provide surveying and engineering for the Water Tower Rehabilitation and Center St Water Line Replacement Project. Point Design Group developed an innovative solution for taking the water tower out of service while ensuring the Village maintained sufficient pressure in the water system.
The design included the installation of three temporary portable hydropneumatic tanks connected to the tower’s control panel to allow communication to the booster pumps to ensure that the Village’s water system maintained proper pressure throughout the duration of the project. While out of service, the tower was rehabilitated and relined to enable the tank to continue to safely and reliably serve the community.
In addition, the project involved replacing more than 1,400’ of 8” water main and resurfacing Center St. We also assisted the Village in obtaining the needed permits for the project. The project’s total value was approximately $650,000.
Project Client:
Village of Lakemore
Project Location:
Summit County
Services Included:
Water Tower Rehabilitation
Water Main Design
Roadway Resurfacing
Survey & Base Mapping
Permit Assistance
Contract & Construction Administration
Construction Observation
The Bellwood Borough Authority contracted Point Design Group to assist them in preparing plans and specifications, contract award administration and construction observation.
Penn Trafford School District requested Point Design Group to assist with preparing plans and specifications and contract award administration for pipe bursting sections of badly broken sanitary sewer lines next to and around their football stadium due to sewer water escaping and penetrating through an embankment onto neighboring property.
Point Design Group was hired by the Upper Tyrone Township Sewage Authority to design a new sanitary system for 602 residents which had failing private on-lot systems.
Point Design Group performed the surveying and design of the 2,700 feet of 12 inch waterline and 100 feet of 8 inch waterline.
Point Design Group was hired by the City of Canton to design the bank stabilization and 72″ sanitary sewer replacement for an area where the bank was slipping towards the creek.
Point Design Group is the engineer for the Village of Lakemore and was hired to design a replacement 6 inch waterline approximately 890 feet long along Martha Avenue in the Village of Lakemore.
